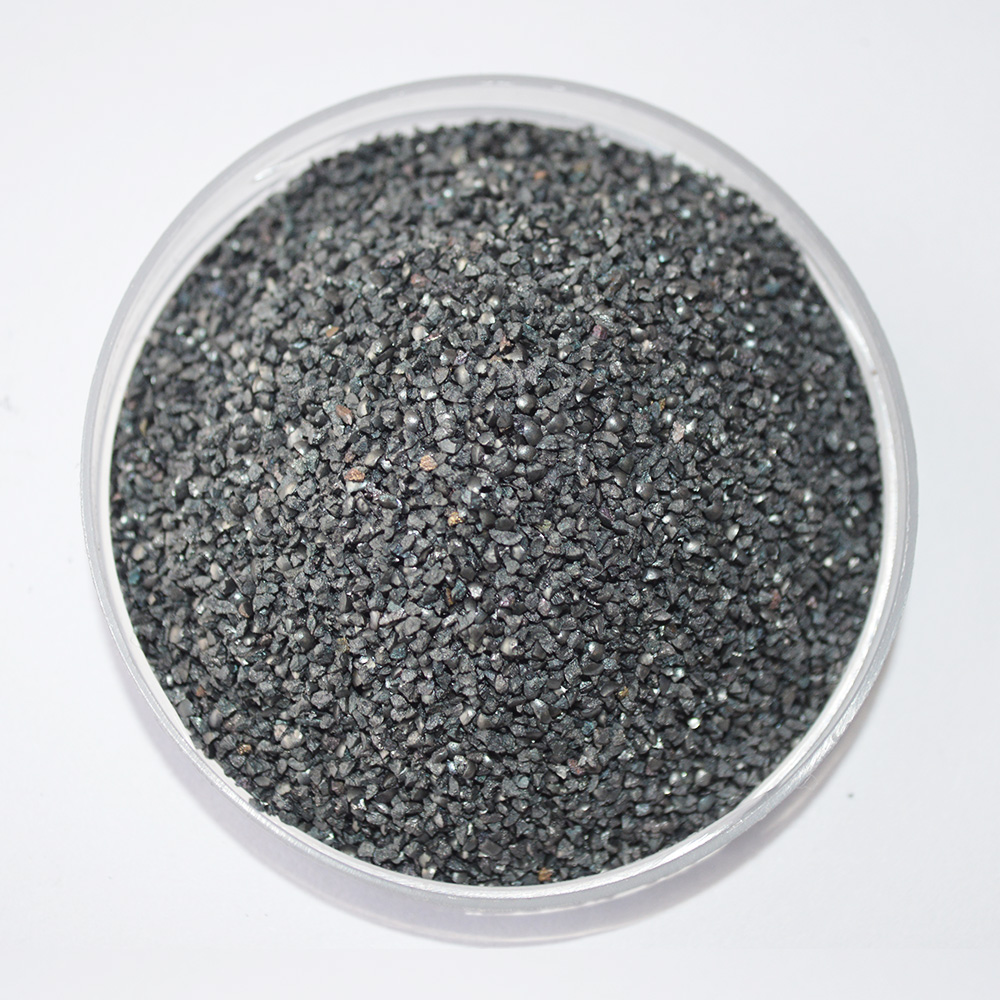

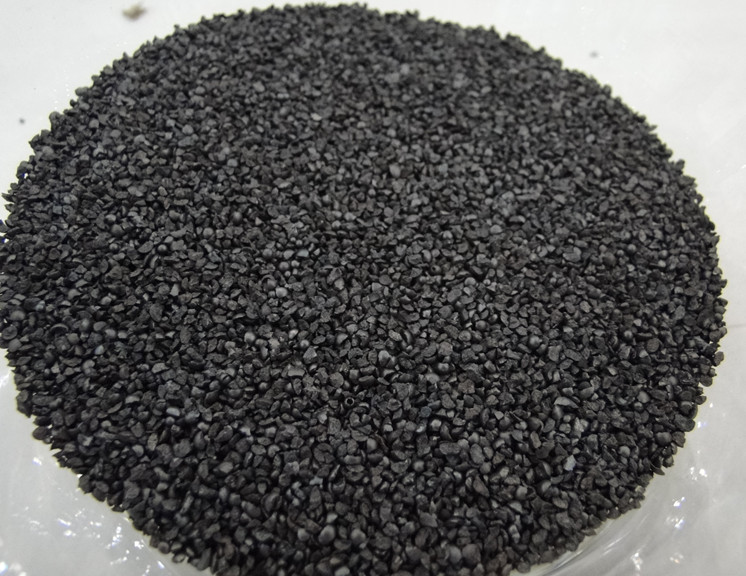

Cast Steel Grit



Cast steel grit adopt advanced production technology of centrifugal atomization granulation, secondary quenching, secondary tempering, martensite and bainite. The products comply with SAEJ444 standards and have passed ISO9001 quality system certification. Products are mainly used in foundry, aerospace, military industry, ships, locomotives, automobiles, steel pipes, steel structures, machinery, mining, oil exploration, containers, stone processing, precision parts processing and other industries.

ꁆ ꁇ
넳 넲

Cast Steel Grit

Chemical Composition

 C

0.85-1.20%
Mn

0.35-1.20%
Si

0.40-1.20%
S

≤0.05%
P

≤0.05%

Hardness

(Measured under 500g load)

GP: 42-50HRC（399-509HV）

GL: 56-60HRC（620-713HV）

GH: 63-66HRC（795-889HV）

Microstructure

Uniform tempered martensite, or uniform tempered martensite + dispersed carbides

Minimum Density

7.2g/㎡



Specification of Steel Grit (mm)
Mesh mm
7

2.800

All pass


8

2.360



All pass


10

2.000

80%min



All pass




12 1.700

90%min

80%min



All pass




14 1.400

90%min

80%min



All pass




16 1.180

90%min

75%min



All pass




18 1.000

85%min

75%min



All pass




20 0.850







All pass




25 0.710

85%min

70%min








30 0.600








35 0.500

80%min





All pass


40 0.425

70%min






45 0.355

65%min



All pass
50 0.300

80%min

75%min

65%min


80 0.180

75%min


120 0.125

60%min
200 0.075

70%min
325 0.045
SAE

G-10

G-12

G-14

G-16

G-18

G-25

G-40

G-50

G-80

G-120
